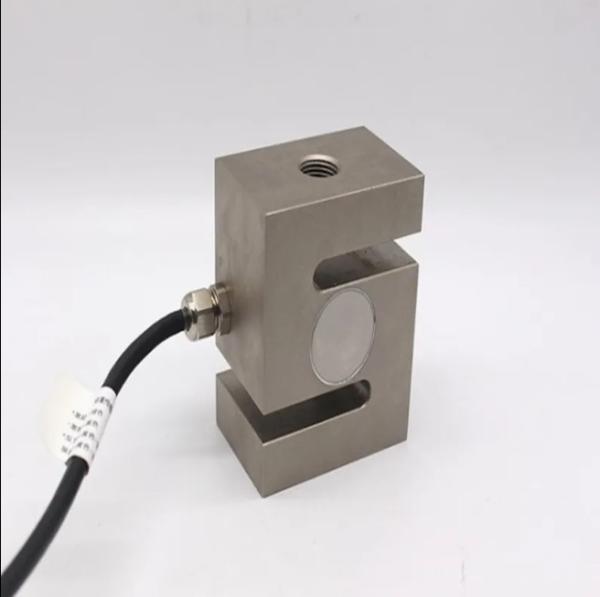

Low Profile S Type Load Cell for Bin Weighing

The Weighing load cell is a force sensor. Sensors are devices that convert the form of energy into readable electrical signals. In this case, the weighing load cell converts the force into voltage, which can be read by electrical equipment. Weighing load cell, respectively are single point load cell, cantilever beam load cell, column load cell, S beam load cell, spoke load cell. Weighing load cell made of stainless steel or alloy steel material, German technology, high precision, anti-bias load ability, strong impact resistance; Easy to install, high level of protection. Applicable to electronic scale, counting scale, electronic balance, packaging scale, hopper scale, industrial weighing instrument, industrial weighing system and so on. Please contact for products details and catalog→ Specifications Technique Specifications Technique Capacity 50,100,200,300,500kg, 1,2,3,5t Insulation ≥5000MΩ/100VDC Rated output 2.0±1%mV/V Recommended excitation 5~12V Zero balance ±2%mV/V Maximum excitation 15V Non-linearity ≤0.02%F.S. Compensated temp range -10~40ºC Hysteresis ≤0.02%F.S. Operation temp range -20~75ºC Repeatability ≤0.02%F.S. Safe overload 150%F.S. Temp.effect on output 0.02%F.S./10ºC Ultimate overload 500%F.S. Temp.effect on zero 0.02%F.S./10ºC Cable size 5m Input impedance 350±100Ω Material Alloy Steel Output impedance 300±5Ω

Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2: Can you print our brand on the product?
A: Yes, Of course. It can make customer's brand logo.
Q3: What is the payment terms?
A: T/T,L/C,etc.
Q4: How long is your warranty period?
A: Our warranty period is 12 months.

Xian Ruijia Measurement Instruments Co., Ltd is a professional manufacturer of sensors in state-level high-tech industry development zone, Xi’an of China. Since 2005, We focused on development and production of pressure sensor, weighing sensor etc.

Xian ruijia have first-class technical team, with strong R & D capability and rich experience in production management. In the production line, we have the most advanced and completed sets of equipment to ensure product quality and reliability.

Xian ruijia brings together the top professional talents and technology. The software and hardware of our advanced testing equipment designed by our professional and technical personnel. We have obtained several utility medel patents from National Patent Office.

We provide customers with affordable, high-quality products. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key components from Germany and the United States, and the production and manufacturing in China. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our many years performance of the sensor.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 50 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Looking forward to the future, the company is moving into the fast lane of development and will continue to adhere to the concept of creating quality products to serve global customers. Our mission is to be the most valuable and competitive automotive sensors in the world.
