Single point load cell 50-2000kg
Features:
Capacity 50kg-2000kg
High accuracy
High stability
Nickel plated alloy steel
The load cell is suitable for bench scales, platform scales and
weighing machines with accuracy C3. The load cell gives extremely
accurate reproducible results, over a long term even in harsh
industrial environments. Each individual load cell ZMPF is corner
adjusted and optimised for out of center load sensitivity. This
ensures that there will be no measurement error when the load is
placed off centre, eg in a corner of a platform.

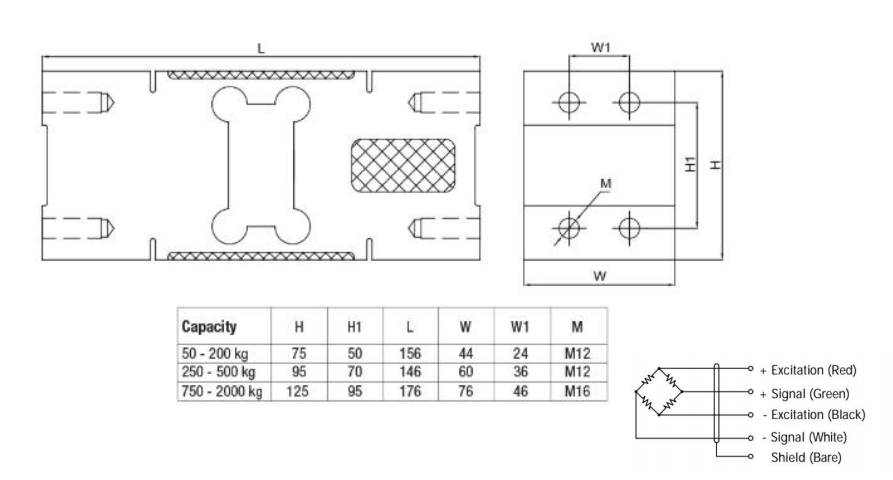

Dimensions in mm
|
| PARAMETER | VALUE | UNIT |
| Standard capacities (Emax) | 50-2000 | KG |
| Rated output-R.O. | 2.0 | mV/V |
| Zero balance | 1 | ±% of rated output |
| Non linearity | 0.03 | ±% of rated output |
| Hysteresis | 0.03 | ±% of rated output |
| Non-repeatability | 0.02 | ±% of rated output |
| Creep error (30 minutes) | 0.03 | ±% of rated output |
| Zero return (30 minutes) | 0.03 | ±% of rated output |
| Temperature effect on min. dead load output | 0.0026 | ±% of rated output/℃ |
| Temperature effect on sensitivity | 0.0015 | ±% of rated output/℃ |
| Compensated temperature range | -10 to +40 | ℃ |
| Operating temperature range | -20 to +60 | ℃ |
| Safe overload | 150 | % of R.C |
| Ultimate overload | 200 | % of R.C |
| Excitation, recommended | 10 | Vdc |
| Excitation, maximum | 15 | Vdc |
| Input resistance | 360±10 | Ohms |
| Output resistance | 350±3 | Ohms |
| Insulation resistance | 5000 | Mega-Ohms |
| Material | Alloy steel | |
| Protection class | IP66 | |
