    CE RoHS 4-20mA Absolute Gauge Pressure With Circuit Board Digital Output -40 to 125 Degree Liquid Air Pressure Sensor

    Ask Lasest Price
    Brand Name : RUIJIA
    Model Number : RJ10C
    Certification : CE
    Price : USD9.5-12/piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : Within 2Weeks
    • Product Details
    • Company Profile

    CE RoHS 4-20mA Absolute Gauge Pressure With Circuit Board Digital Output -40 to 125 Degree Liquid Air Pressure Sensor

    CE RoHS 4-20mA Absolute Gauge Pressure With Circuit Board Digital Output -40 to 125 Degree Liquid Air Pressure Sensor

    CE RoHS 4-20mA Absolute Gauge Pressure With Circuit Board Digital Output -40 to 125 Degree Liquid Air Pressure Sensor

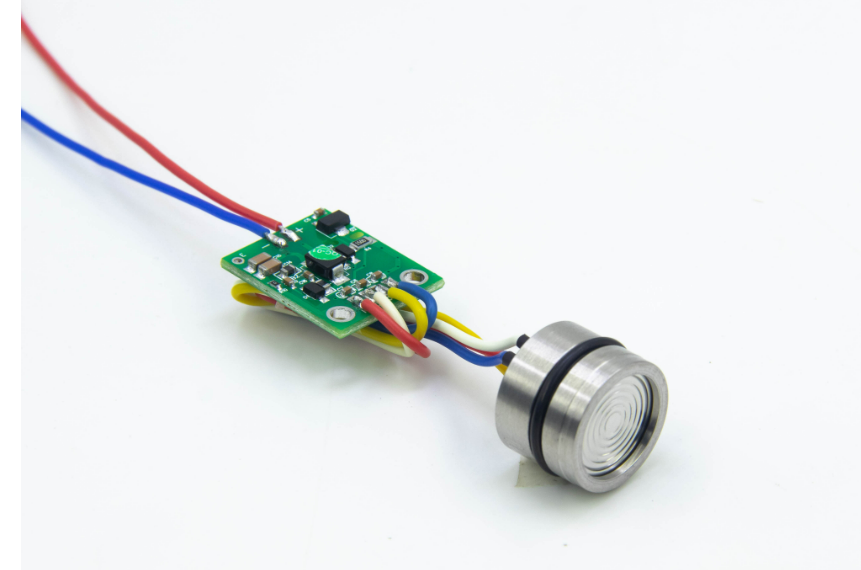

    RJ10-C Sensor Circuit Components
    Features
    ■316L stainless steel diaphragm structure
    ■Sensor + circuit structure
    ■ Small size, light weight
    ■The product has been calibrated and used directly after installation
    ■Strong anti-interference, good long-term stability
    ■ Wide range, can measure absolute pressure, gauge pressure and seal pressure
    Applications
    ■ Process control
    ■ Aviation and aerospace
    ■Automobile, medical equipment
    ■ Piping system
    Product overview
    The pressure sensitive core of PC10-CSensor circuit components uses PC10 diffused silicon sensor.

    The nanocore microdigital circuit is used to convert the sensor millivolt signal into a standard current signal, which can be
    directly connected to the computer interface card, control instrument, intelligent instrument or PLC, etc.Current output can be used for long-distance transmission.

    The transmitter assembled by PC10-C sensor circuit components can be widely used in process control manufacturing, aviation, aerospace, automotive, medical equipment, HVAC and other fields.
    Specification
    Electrical performance parameters
    Pressure range
    -100kPa~-100kPa…0~35kPa…60MPa
    Pressure reference
    Gauge pressure, Absolute pressure, Sealed gauge pressure
    Accuracy
    0.5%FS
    Hysteresis
    0.1%FS
    Repeatability
    0.1%FS
    Temp. drift
    35kPa:±3%FS(0℃~60℃)
    Others:±1.5%FS(-10℃~70℃)
    Response time
    ≤90ms (Up to 90%FS)
    Overload pressure
    Refer to “Pressure range selection”
    Durability
    ≥106 pressure cycles
    Ambient temp.
    -20℃~85℃
    Medium temp.
    -30℃~105℃
    Storage temp.
    -40℃~125℃
    Insulation resistance
    ≥250MΩ/500VDC(100MΩ/250VDC)
    Diaphragm material
    316L
    Housing material
    316L
    Oil filling
    Silicon oil
    Sealing ring
    NBR or fluorine rubber
    Output and power supply
    Code
    B1
    B3
    B7
    B6
    B6N
    Output
    4~20mA
    0~5V
    0~10V
    0.5~4.5V R/M
    0.5~4.5V Non R/M
    Power supply
    12~30VDC
    5VDC
    Electrical connection
    Connection mode
    Current (2 wires)
    Red: Supply+
    Blue: Current output
    Connection mode
    Voltage
    (3 wires)
    Red: Supply+
    Blue: Ground
    Yellow: Voltage output
    Pressure range selection
    Code
    Pressure reference
    Pressure range
    Overpressure
    Burst pressure
    Remark
    (-100~0)k
    G
    (-100~0)k
    300%FS
    600%FS
    10k
    G
    0~10kPa
    300%FS
    600%FS
    35k
    G, A
    0~35kPa
    300%FS
    600%FS
    70k
    G
    0~70kPa
    300%FS
    500%FS
    100k
    G, A
    0~100kPa
    200%FS
    500%FS
    250k
    G, A
    0~250kPa
    200%FS
    500%FS
    600k
    G, A
    0~600kPa
    200%FS
    500%FS
    1M
    G, A
    0~1MPa
    200%FS
    500%FS
    1.6M
    G, A, S
    0~1.6MPa
    200%FS
    500%FS
    2.5M
    S
    0~2.5MPa
    200%FS
    500%FS
    6M
    S
    0~6MPa
    200%FS
    400%FS
    10M
    S
    0~10MPa
    200%FS
    400%FS
    25M
    S
    0~25MPa
    200%FS
    400%FS
    40M
    S
    0~40MPa
    200%FS
    400%FS
    60M
    S
    0~60MPa
    150%FS
    300%FS
