    Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

    Ask Lasest Price
    Brand Name : RUIJIA
    Model Number : RJ
    Certification : CE
    Price : USD1 ~77/piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Month
    Delivery Time : 5-8 Work days
    • Product Details
    • Company Profile

    Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

    Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

    Features

    Minitype pressure transducer is useed for compression force measurement application. The load button load cell is capable of measuring compression forces up to 100kg using strain gauge technology. The miniature force sensor can be used in tight Spaces due to its small size.
    * Subminiature size
    * Stainless steel
    * High precision

    Applications

    * 3C digital detection
    * Load distribution measurement
    * Auto machine

    Mounting Dimension

    Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

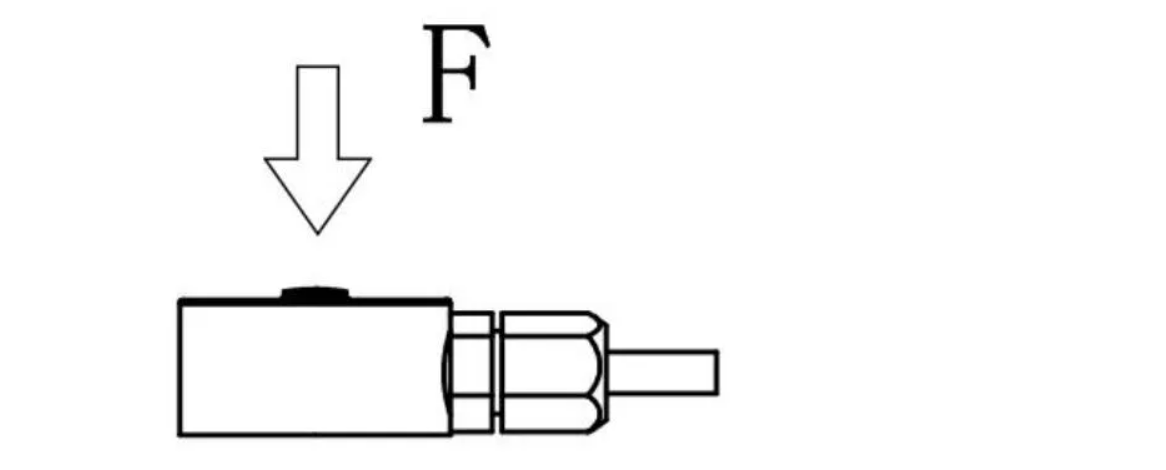

    Load Direction

    Factory Direct Pressure Load Button Force Sensor for Automotive Press Assembly

    Wiring Code

    Factory Direct Pressure Load Button Force Sensor for Automotive Press AssemblySpecifications

    Specifications Technique
    Capacity 5,10,20,30,100kg
    Rated output 1.5±10%mV/V
    Zero balance ±0.05 mV/V
    Creep(30min) ≤0.5%F.S.
    Non-linearity ≤0.5%F.S.
    Hysteresis ≤0.5%F.S.
    Repeatability ≤0.5%F.S.
    Input impedance 800~1100Ω
    Output impedance 800~1100Ω
    Insulation ≥5000MΩ/100VDC
    Recommended excitation 5~12V
    Maximum excitation voltage 15V
    Compensated temp range -10~60ºC
    Operation temp range -20~80ºC
    Temp.effect on output 0.05%F.S./10ºC
    Temp.effect on zero 0.05%F.S./10ºC
    Safe overload 150%F.S.
    Ultimate overload 200%F.S.
    Cable size Φ3×3000mm
    Material Stainless Steel
    Weight 0.1KG
