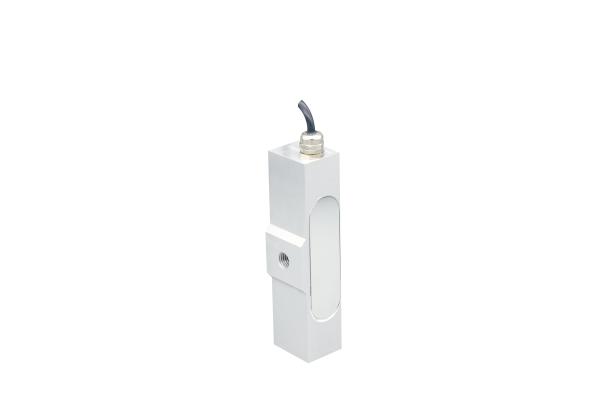

    800 Kg Aliminum Strain Gauge Load Cell Shear Beam Type

    Ask Lasest Price
    Brand Name : ruijia
    Model Number : RJ-6910
    Price : USD7.5
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 Piece/Pieces per Month
    Delivery Time : Within 2-4 Weeks
    • Product Details
    • Company Profile

    800 Kg Aliminum Strain Gauge Load Cell Shear Beam Type


    25 kg High Precision Aluminum Alloy Weighing Sensor Strain Type Weighing Sensor

    Principle and Structure


    The Weighing Sensor is constructed using the principle of resistance strain. When the measured force acts directly on the strain gauge of the hollow cylinder pasted with the resistance strain gauge through the pull-indenter, the strain gauge is axially compressed and radially expanded, the corresponding axial resistance strain value decreases, and the radial value increases. When the bridge is out of balance, when the bridge power is supplied from the outside, there is an unbalanced voltage output at the angle output, which is proportional to the measured force acting on the load cell.


    Features


    1. The weighing sensor has a simple structure and is easy to install, use and carry.

    2. It has good sealing and moisture-proof performance.

    3. It has high anti-vibration and shock stability.

    4. The structural design ensures that the transmission error is small and the measurement is reliable, and it has good static and dynamic characteristics.

    5. It can be used for long-distance static and dynamic measurement.


    Dimension


    Specification:


    技术参数 Parameters
    量程 CapacityKg800
    灵敏度 SensitivitymV/V2.0±0.05
    精度 Accuracy

    ≤±0.05

    蠕变 Creep(15min)%FS≤±0.02
    输入阻抗 Input ResistanceΩ1000±10
    输出阻抗 Output ResistanceΩ1000±10
    绝缘阻抗 Insulation ResistanceM Ω≥5000(100VDC)
    零点平衡 Zero Balance%FS≤±1
    温度对灵敏度影响Temperature Effects on Span%FS/10℃≤0.02
    温度对零点影响Temperature Effect on Zero%FS/10℃≤0.02
    补偿温度范围Rated Temperature Range-10~+60
    工作温度范围Operating Temperature Range-20~+80
    建议激励电压Proposed Excitation VoltageV6~12
    允许激励电压Allowed Excitation VoltageV18
    安全过载 Safe Overload%FS120
    极限过载 Ultimate Overload%FS150
    防护等级 Protection IP65
    电缆线规格 Cable specificationmmФ5
    电缆线长度 Cable lengthm1.4
    材料 Material Aluminum Alloy

    Application


    Process flowchart


    FAQ


    1. What detailed information do I need to provide if I want to place an order?

    We need to know the following information: Capacity, Usage and other related parameters you need.


    2. Do you have any discount?

    Yes, if you buy large QTY, please send us a email, we will give you a big discount.


    3. When will you arrange the production?

    We will arrange the production immediately after receiving your payment.


    4. How do you ensure good product quality?

    We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
