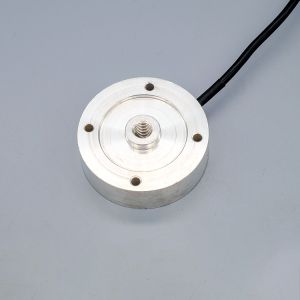

    Wheel Shaped Spoke Load Cell Sensors Low Profile Compression

    Ask Lasest Price
    Brand Name : Ruijia
    Model Number : RJ-6610
    Price : USD 25-35/piece
    Payment Terms : T/T, L/C
    Supply Ability : 10000 Piece/Pieces per Month
    Delivery Time : Within 2-4 Weeks
    • Product Details
    • Company Profile

    Wheel Shaped Spoke Load Cell Sensors Low Profile Compression




    Dimension




    Technical Parameter:


    CapacityKg10/50/100/200
    SensitivitymV/V1.5±0.2
    Accuracy%FS

    ≤±0.1

    Creep(15min)%FS≤±0.02
    Input ResistanceΩ750±30
    Output ResistanceΩ700±10
    Insulation ResistanceM Ω≥5000(100VDC)
    Zero Balance%FS≤±1
    Temperature Effects on Span%FS/10℃≤0.05
    Temperature Effect on Zero%FS/10℃≤0.05
    Rated Temperature Range-10~+60
    Operating Temperature Range-20~+80
    Proposed Excitation VoltageV6~12
    Allowed Excitation VoltageV18
    Safe Overload%FS120
    Ultimate Overload%FS150
    Protection IP65
    Cable specificationmmФ5
    Cable lengthm2
    Material Aluminum Alloy


    Application


    Production Process



    Company Profile

    Xi'an Ruijia Measurement Instrument Co.,Ltd is established in 2005, mainly engaged in the design, production, sales and technical services of force sensors and related electronic products. Our headquarters is located in Xi'an High-tech Zone, Jinye First Road, No. 81, and its branch is located in Hantai District, Hanzhong City, Shaanxi Province.
    We mainly undertake high-precision load cells for aluminum and steel parts with ranges from 1kg to 50t, and pressure sensors with range from 1Mpa to 200Mpa. We have independently developed a series of electronic balance load cells, which can meet the requirements of 2kg, 3kg, 5kg. The products have been well received by many customers at home and abroad, and have been awarded the honorary title of Xi'an High-tech Enterprise. The self-developed oil well drilling, fracturing and cementing pressure sensors not only have independent and independent intellectual property rights, but also have received strong support from National Fund. The products have reached similar technical standards in Europe and the United. Our company also develops OEM products according to the special requirements of customers, and it is our aim to meet all the requirements of customers.
    Through years of development, our company has its own complete set of system in technology and
    management. Our products are of high quality, many varieties and specifications, and strong matching. Most of our products are exported to overseas markets and have long gone to the praise and trust of our customers.
