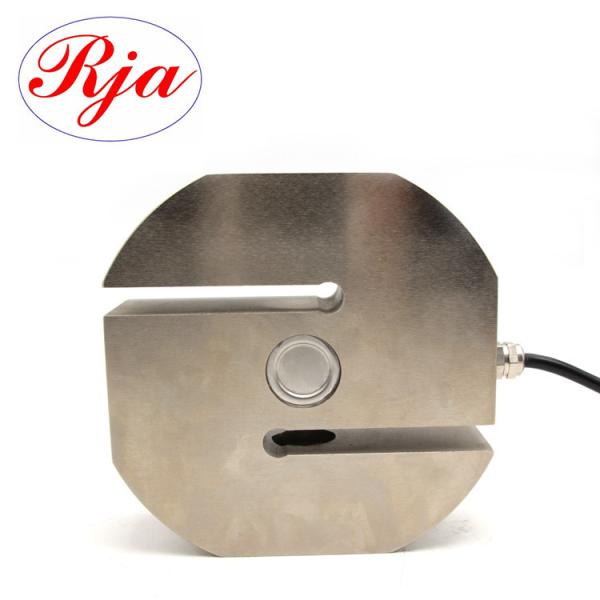

    Industrial Round S Load Cell , C2 / C3 S Beam Type Low Cost Load Cell

    Ask Lasest Price
    Brand Name : ruijia
    Model Number : RJ-9310
    Price : USD20-40/pc
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Piece/Pieces per Month
    Delivery Time : 2-4 weeks
    • Product Details
    • Company Profile

    Industrial Round S Load Cell , C2 / C3 S Beam Type Low Cost Load Cell


    Industrial Round s type load cell tension S Beam Type weighing sensors

    Strength of Load Cell:

    1. Made of alloy steel
    2. With glue sealing and nickel plated surface,waterproof and anticorrosion, could work for various application
    3. Suitable for crane scale, vibratory feeding equipment and other electronic weighing devices

    Features:

    It is suitable for measuring and controlling the value of equipment such as weighing scale, electromechanical combination scale, lifting hook scale, packing scale and material mechanics testing machine.High precision, two-way bearing, easy installation.

    Specification:

    Rated load(KG)

    20~5000kg

    Temp. effect on span

    ±0.02%FS/10℃

    Comprehensive error

    0.02%FS

    Use temp. range

    -20℃~+65℃

    Rated output

    2.0mV/V

    Input resistance(Ω)

    380±10

    Creep (30 min.)

    ±0.02%F.S

    Output resistance(Ω)

    350±3

    Zero balance

    ±1.00%F.S

    Insulation resistance(MΩ)

    >5000

    Temp. effect on zero

    ±0.02%FS/10℃

    Excitation voltage

    10VDC

    Safe overload

    150%FS



    What is Application of Load cell?


    GSL301 500kg S type Compression Tension Load Cell


    What is Process Flowchart of Load cell?




    Packaging & Shipping


    Industrial Round S Load Cell , C2 / C3 S Beam Type Low Cost Load Cell
    GSL301

    FAQ


    1. What detailed information do I need to provide if I want to place an order?
    We need to know the following information: Capacity, Usage and other related parameters you need.

    2. Do you have any discount?
    Yes, if you buy large QTY, please send us a email, we will give you a big discount.

    3. How do you ensure good product quality?
    We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
