IP67 Portable Zemic Strain Gauge Load Cell For Multiform Environments

    Buy cheap IP67 Portable Zemic Strain Gauge Load Cell For Multiform Environments from wholesalers

    Buy cheap IP67 Portable Zemic Strain Gauge Load Cell For Multiform Environments from wholesalers
    • Buy cheap IP67 Portable Zemic Strain Gauge Load Cell For Multiform Environments from wholesalers
    • Buy cheap IP67 Portable Zemic Strain Gauge Load Cell For Multiform Environments from wholesalers

    IP67 Portable Zemic Strain Gauge Load Cell For Multiform Environments

    Ask Lasest Price
    Brand Name : ruijia
    Model Number : HM9B
    Price : USD80-150/pc
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Piece/Pieces per Month
    Delivery Time : 2-4 weeks
    • Product Details
    • Company Profile

    IP67 Portable Zemic Strain Gauge Load Cell For Multiform Environments

    Portable Zemic Weighbridge load Truck Scale Digital Load Cell 30Ton Hm9B Zemic Load Cell

    What is Features of load cell?

    Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and otherelectronic weighing devies.


    Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.


    What is Specifications of load cell?


    Precision : C3Temp. effect on span(%F.S/10℃): 0.0016
    Comprehensive error(%F.S) : ≤0.02Temp. effect on zero(%F.S/10℃):0.002
    Rated output(mv/v) : 2.0±0.004Compensated temp. range(℃ ) : -10~+40
    Creep(%F.S/30min) : ±0.02Use temp. range(℃ ) : -35~+80
    Zero balance(%F.S) : ±1.0Excitation voltage(V) : 9~12(DC)
    Input resistance(Ω) : 750±7Safe overload (%F.S) : 150
    Output resistance(Ω) : 702±5Ultimate overload (%F.S) : 200
    Insulation resistance(MΩ) : ≥5000(50VDC)Defend grade : IP67

    What is Dimension of load cell
    GBS800S

    What is Application of Load cell?


    GBS800 Weighbridge Truck Scales Load Cell 30t

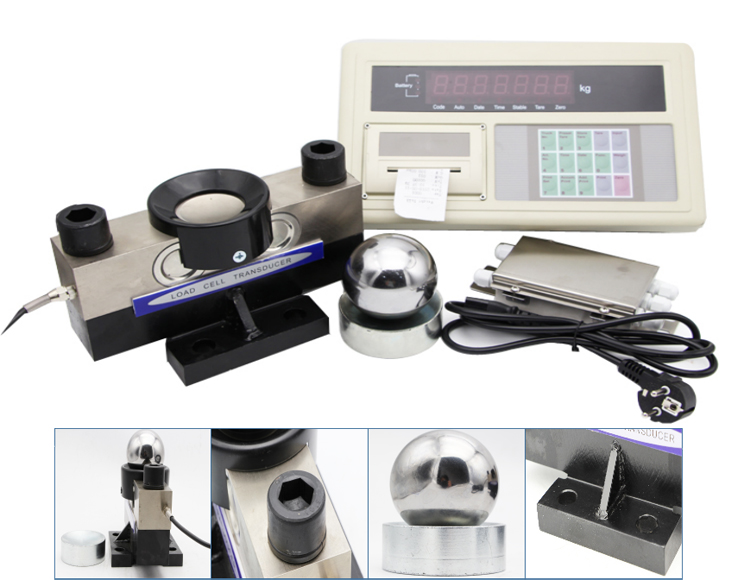

    What is Detailed image of Load cell?

    IP67 Portable Zemic Strain Gauge Load Cell For Multiform Environments


    FAQ

    Q:What are the applications of bridge type load cell?

    A: Weighbridge scale, truck scale, etc.


    Q:What is the raw material?

    A: Alloy steel


    Q: What is the load range?

    A: 1kg-100kg 0.1T-100T


    Q: What is the accuracy/precision?

    A: C3 0.02%


    Q: What is the IP production rate?

    A: IP66, IP68


    Q: What is the load range?

    A: 10-40T


    Q: What is the weighbridge complete weighing system?

    A: Load cells+junction box+GSI201-P truck scale weighing indicator with printer+GSI409 big display screen

    What is Process flowcharts of Load cell?
